Enfora SA GSM/GPRS/EDGE QUAD-BAND INTEGRATED PLATFORMS
ADD PLUG-AND-GO WIRELESS TO REMOTE MONITORING & RURAL INTERNET APPLICATIONS
    The Enfora SA family is a fully certified quad-band integrated platform that enables simple integration through a serial or USB connection. Available with GSM/ GPRS and EDGE capabilities, the SA family also lets you address multiple markets and geographies with a single design. The included modem-management software supports Windows^® XP, Professional 2000 and 98SE.
QUICK OVERVIEW
• Compact, economical standalone IP modem
• Full GSM/GPRS/EDGE voice and data features
• Simple serial or USB connectivity
• Auto-registration on start-up
• Modem-management software supports Windows^® XP, Professional 2000 and 98SE
• Seamless extruded aluminum housing
CHARACTERISTICS
Dimensions (L x W x H)             63.5 x 63.5 x 23.9 mm
Housing                            Plastic
Antenna                            SMA connector
Voice Jack                         N/A
RADIO PERFORMANCE
Frequency (MHz)                    850/900/1800/1900
Sensitivity                       –106 dB (typical)
Transmit power                     Class 4 (2W@850/900 MHz); Class 1 (1W@1800/1900 MHz)
PACKET DATA
Mode                               Class B, Multislot 10
Protocol                           GSM/GPRS Release 97,AMR Release 99
Coding schemes                     CS1-CS4
Packet channel                     PBCCH/PCCCH
GSM FUNCTIONALITY
Voice                              FR, EFR, HR & AMR
CS data                            Asynchronous; Transparent and Non-Transparent up to 14.4 kb
GSM SMS                            Text, PDU, MO/MT, Cell Broadcast
SOFTWARE
Host Protocols                     AT commands, UDP API, CMUX, PPP
Internal Protocols                 PPP, UDP API, TCP API, UDP PAD, TCP PAD
API Control/Status                 AT commnads, UDP API, TCP API, AT commands over SMS
INTERFACES
Physical interface                 RS-232C
Peripheral interface               8-pin I/O: Mic in, headset out, audio return,ground, input
                                   power, 2 user-defi ned I/O, and 1 dedicate output
SIM ACCESS                         External 1.8/3V with locking mechanism
ENVIRONMENT
Operating                         –30ºC to +70ºC
Storage                           –40ºC to +85ºC
Humidity                           Up to 95% non-condensing
POWER
DC voltage                         6-40 Vdc

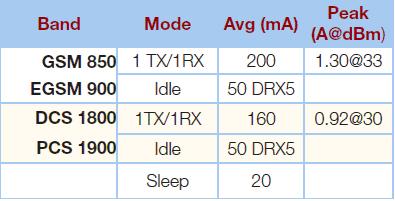

GSM operating power (typical)      SA-G+ @ 9 V

CERTIFICATIONS
FCC                                Parts 15, 22 & 24
GCF                                Version 3.21.1
PTCRB                              Version 3.7.1
Industry Canada (CSA)              Yes
CE Mark                            Yes
RoHS Compliant                     Yes
